Sample of Databar EAN 13 Barcode Font
With Barcode software users can add a composite component of MicroPDF417 with linear barcode EAN - 13 to encode more data in a single barcode. Composite components are of two types CC-A and CC-B. CC-A can encode 56 characters in rows and column format while CC-B comes in place when the number of characters exceeds from 56 to 57 or even more. You can see this composite symbology above EAN 13 barcode font in following image.
Designing Procedure:
DRPU Barcode Label maker software has two main modules for generating barcode labels: Barcode Designing View and Barcode Settings. Barcode label design using Barcode Designing View is shown below:
➨ Select Barcode Technologies and Type: Go to toolbar (drawing tools) and click on barcode icon to add it on label. Now, to open the barcode properties, double click on inserted barcode.
Select barcode designing view and set Barcode font and type (Databar EAN 13) and specify Barcode value, Composite data, header and footer accordingly.
* Composite Data: 2D Composite component symbol to print above the linear barcode.
➨ Set Margins: Set barcode height, X dimension and margins according to your business.

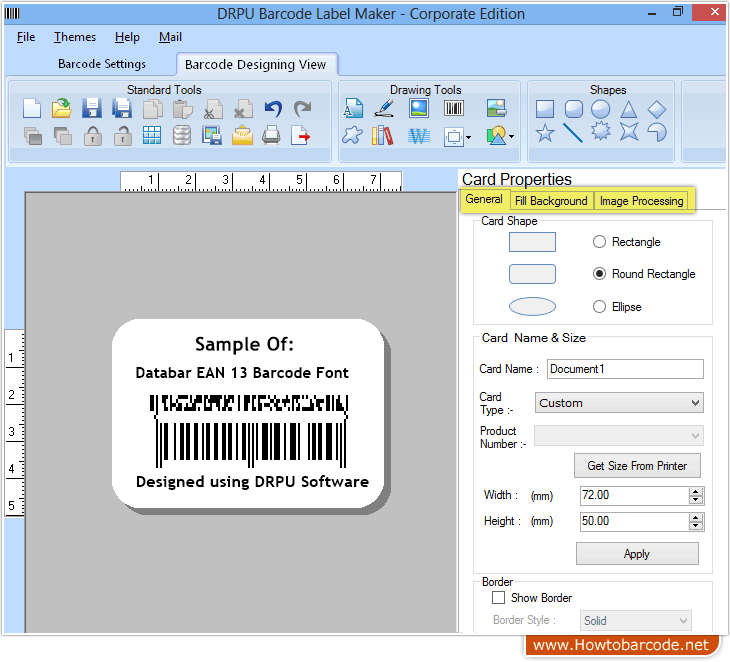

➨ Specify Card Shape and Size: Specify card name, size and shape etc. as per your label on which you want to print barcode images.
Printing Procedure:
On completing your barcode designing process, click on print icon from toolbar. Then select one of the printing modes: Pre Define Label Stock Mode or Manual Mode.
➨Manual Print Settings: In case of Manual Mode you need to specify page properties, number of copies, margins etc. manually then click on print button to proceed. Note: To edit page properties go to Edit button of print profile.
➨ Printing Barcode Labels: Label printing using thermal printer is so easy and simple while using DRPU Barcode Generator Software. You can print barcode labels simultaneously with any type of thermal printer.
You can also print your generated Barcode image using Pre define label stock mode. Follow few steps to know its working process:
➨ Pre define label stock print mode: In case of Pre Define Label Stock Mode, choose your desired label product and product number. Then set printer details to print barcode images.
➨ Printing Barcode Fonts on sheet: Below screen displays printed sheet using Laser Printer, you can choose any printer.
➨ Scan Databar EAN 13 Font: Finally your printed Databar EAN 13 barcode images are ready to use.
