Databar Code 128 Set A is a 2D symbology that supports numeric values, capital letters, punctuation, and control codes. It includes additional information such as product weight, serial numbers or expiry dates.
Databar Code 128 Set A can encode partial ASCII set (00-99), all upper case (A-Z), all numeric digits (0-9), no lower case, but ASCII control chars (TAB, CR/LF etc.).
The Databar Code 128 barcode font cannot represent all ASCII characters (128) together. To encode all the ASCII characters together it switches from Set A to Set B. Set A (00-99 ASCII Characters) and Set B (32-127) covers all the ASCII values together. The Databar code 128 set A is an auto switching barcode symbology that enables you to switch from Set B to Set C so that user can encode almost any type of data.
Databar Code 128 Set A also has capability of encoding more data with the help of composite component technology. CC-A and CC-B composite barcode technology helps encoding more data. CC-A can encode 56 characters long data and switches automatically to CC-B when the data increases to more than 56 characters.
Application Area : Generally used in inventory and shipping industry.
Sample of Databar Code 128 Set A Barcode Font
Sample of DRPU Databar Code 128 Set A Font.
Designing Procedure:
To start your barcode designing process, you need to select one of the modules either Barcode Designing View or Barcode Settings module of DRPU Barcode Maker Software. For demonstration, we are going to use Barcode Designing View. Go to drawing tools and click on barcode icon to insert it. In order to alter barcode properties, double click on it.
➨ Barcode Technologies and Font Type Selection: To start your barcode designing process, choose barcode technology with font type (Databar Code 128 Set A) and set value of barcode, composite data, header and footer etc. Composite data is a 2D component that is used to encode supplementary data.
➨ Size Settings: To set bar height, X-dimension and margins etc. as per need, go to size tab.
➨ Specify Card Shape and Dimension: Specify shape, size and name of card along with other properties to generate barcode label.
To print your designed Databar Code 128 SET A Barcode Font, go to print option and choose one of the printing options.
➨ Printing using Manual Mode : In Manual print settings option, set all printing properties yourself according to your need. To set page properties, go to Edit button.

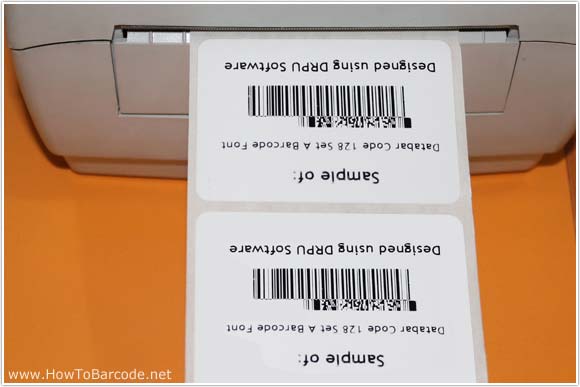

➨ Barcode label printing: Printing of Databar Code 128 SET A Barcode Font label can be done using Thermal Printer with high quality and better readability.
➨ Printing using Pre Define Label Stock Mode: You may also have Pre Define Label Stock mode of printing to print your designed label.
In Pre Define Label Stock mode, print settings of various Label Products are defined. You need to choose Label product with product number to fetch all details. Then go to print options, to choose your printer details.
➨ Barcode printing process: Screen shows Databar Code 128 SET A Barcode Font sheet, printed with the help of Laser printer (eg: HP LaserJet CP 1025). You can choose other printer also.
➨ Barcode Label Scanning Process: Your designed Databar Code 128 SET A Barcode Font is now ready to use.
